MECHANICAL DATA
Capacity
2,048Wh
Battery Type
LiFePO4
Protection Level
IP65
Performance Warranty
3 years
Dimensions (L x W x H)
400 x 320 x 210mm
Weight
23.5 ± 0.5kg
Wireless Type
Bluetooth 5.0 & WiFi 2.4GHz
PV INPUT
Input Power
100 - 400W per channel (total two channels)
Input DC Voltage
12 - 65V
MPPT Voltage
26 - 50V
Input Current
15A
STORAGE INPUT
Input Power
800W
Input Current
20A (max)
Input Voltage
44 – 58.4V
OUTPUT TO MICROINVERTER
Output Power
800W (max)
Output Voltage
55V (max)
Output Current
18A (max)
Connector
MC4
OPERATING CONDITIONS
-20°C to 45°C (-4°F to 113°F)
-20°C to 45°C (-4°F to 113°F)
＜2,000m

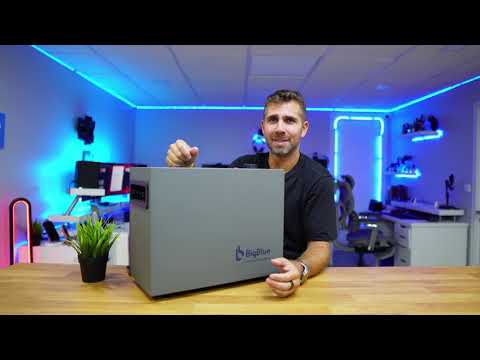

1. What is BigBlue POWAFREE H4?
POWAFREE H4 is a compact integrated energy storage system that combines the PV controller and battery pack into a single unit. Experience the convenience of integration with our 2-in-1 POWAFREE Balcony Solar - affix to your balcony railing or privacy screen, then simply pair it, plug in, and power up! Effortlessly generating power as easily as ABC, starting during the day.
*Remarks: Microinverter is not included. For optimal performance, we recommend using microinverters from APsystems or Deye.
2. What are the differences between the POWAFREE H4 and the previous model H1?
The main differences between POWAFREE H4 and the first generation H1, are in the design and waterproof levels. The H4 features a 2-in-1 design, integrating the PV hub and battery into a single unit. In contrast, the H1 utilizes a separated PV hub and battery setup.
3. How can I access real-time data on the power generated by the POWAFREE system?
Advanced features, controls, and device information of POWAFREE Balcony Solar; like your power consumption, storage capacity, and panel productivity to name a few, can be accessed in real-time from BigBlue ’s custom-specified app – ‘BigBlue Energy’ over a Wi-Fi connection.
4. How can I control the generated power via the App?
There are three operating modes available:
Self-Storage: Prioritize power storage (to the battery). Select this option if you want to prioritize charging the POWAFREE H4 until it reaches the charging limit. In this mode, the H4 will not discharge to the microinverter/grid.
Self-Consumption: Prioritize power supply (to the grid). Select this option if you want to prioritize meeting the power consumption of the home. In this mode, all solar input will be directed to microinverter/grid.
Customization: Set your preferences based on time frames and wattage values. This mode allows you to tailor the energy distribution to match your specific needs.
5. I have had my solar panel system installed and would like to store the extra generated power in a battery system. Can I pair it with POWAFREE H4?
Yes, you can pair your solar panel system with the POWAFREE Balcony Solar as long as it meets the specification requirements for the POWAFREE H4. Specifically:
- The solar panel's open circuit voltage (Voc) should be within 16V to 60V. It's recommeded that the closed-circuit current for a single PV input should not exceed 24A.
- The microinverter’s PV input voltage should be within 16V to 58V. For optimal performance, we recommend using microinverters from APsystems.
Note: Input voltage that exceeds the specified range can cause permanent damage to the POWAFREE H4.
6. Can I connect several solar panels to POWAFREE H4?
Yes. The POWAFREE H4 features two distinct groups of solar inputs. Each with 100-400W per channel, with an open circuit voltage spanning from 12V to 65V. It's important not to surpass this voltage range.
7. Can the POWAFREE H4 operate in the wintertime?
Thanks to the revolutionary and ground-breaking BigBlue’s Complementary Optimization technology, the POWAFREE H4 continues to dis/charge even in below-freezing conditions when faced with extremely cold temperatures.
8. What is the expected lifespan of the POWAFREE H4?
The POWAFREE H4, equipped with a LiFePO4 battery, is designed with a lifespan of approximately 10 years, depending on usage and maintenance. The battery is rated for 4000+ charge cycles while retaining up to 80% of its original capacity.
