COMING SOON

POWAFREE H4

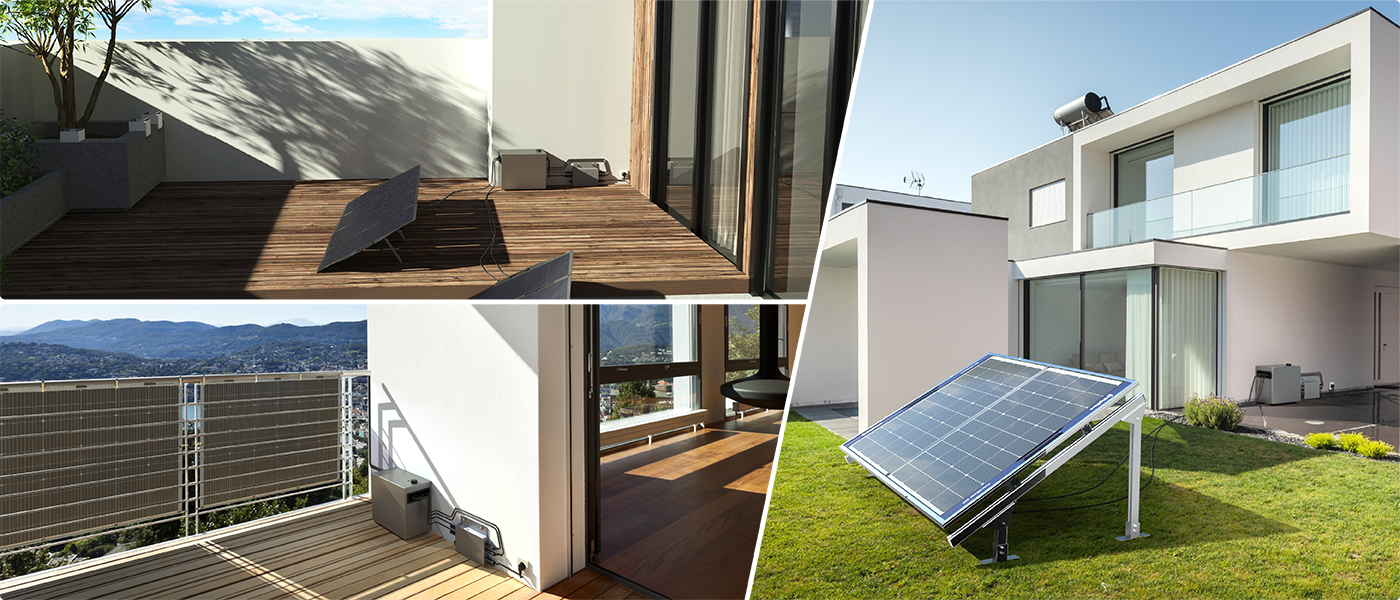

Introducing the POWAFREE H4, a new series of POWAFREE Balcony Solar designed for maximum affordability and simplicity.

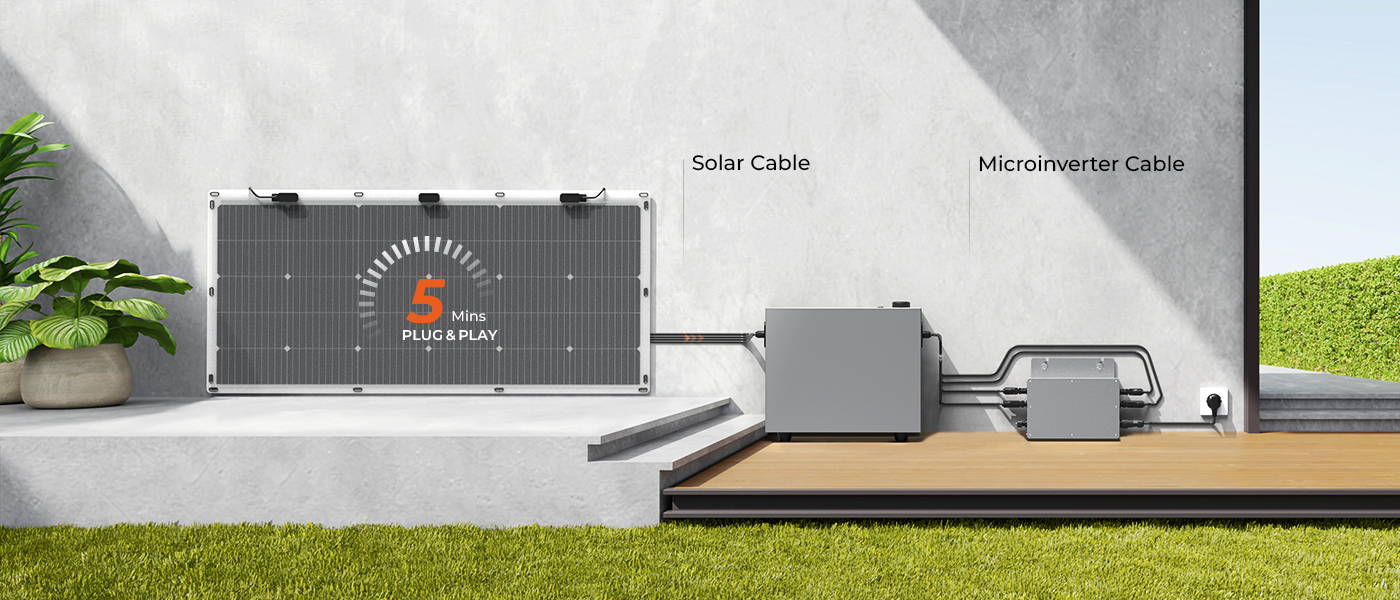

PLUG-N-PLAY & EASY REMOVAL

Designed for efficiency and convenience, the POWAFREE H4 eliminates the need for separate components, making installation easier than ever before. With its intuitive design, setting up the POWAFREE H4 is as easy as ABC. Simply pair it, plug in, and power up!

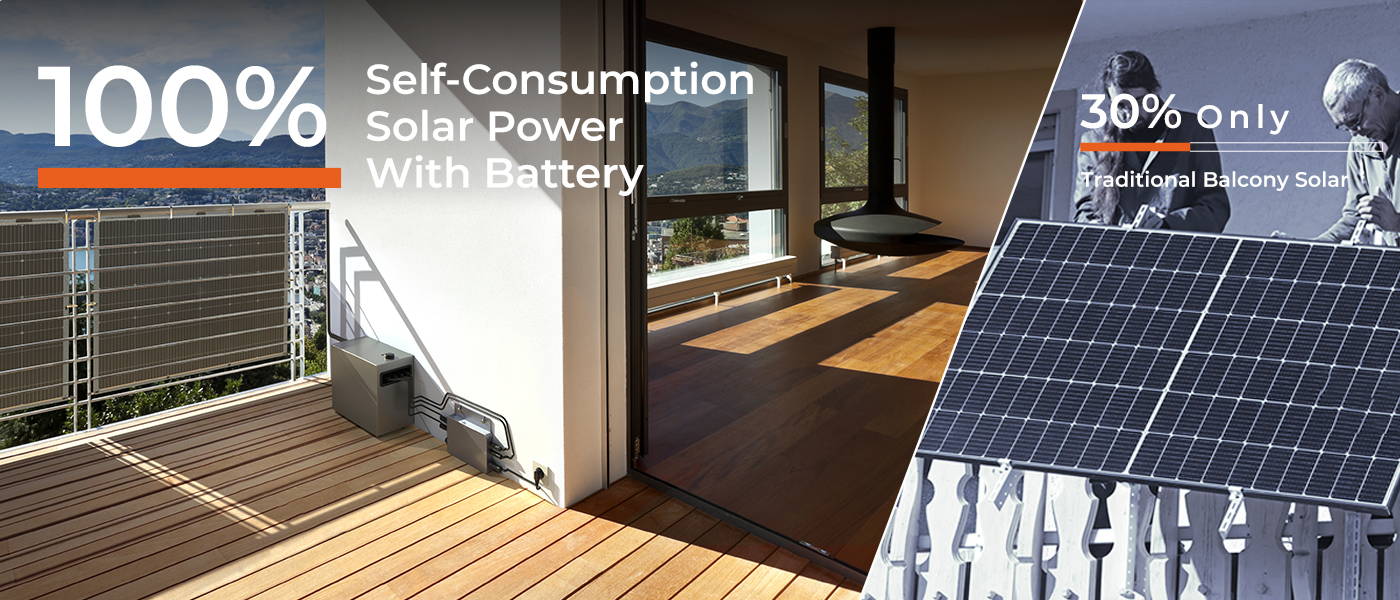

SAVE & EARN ELECTRICITY BILL

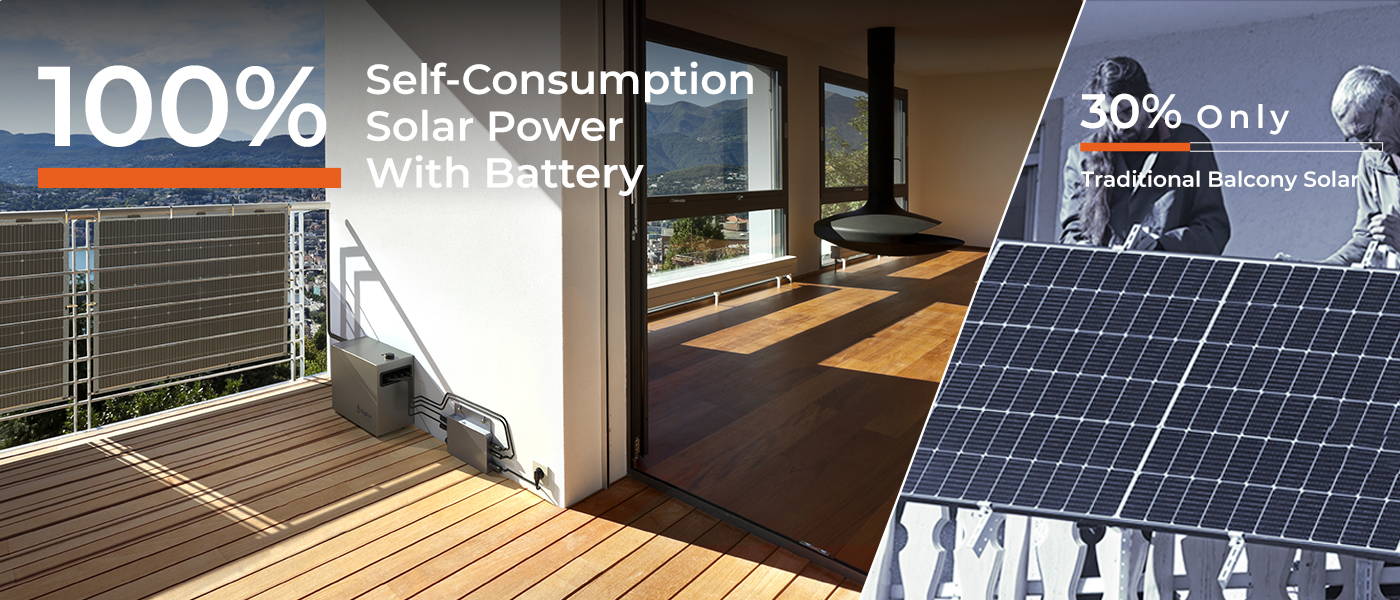

Unlike traditional balcony solars which are designed without power storage, the POWAFREE H4 continues to deliver reliable energy when you need it most. With 2048Wh storage, you can store the excess generated power during the day (when you are at work), and use it at night, achieving self-generation, self-consumption, and self-sustainability.

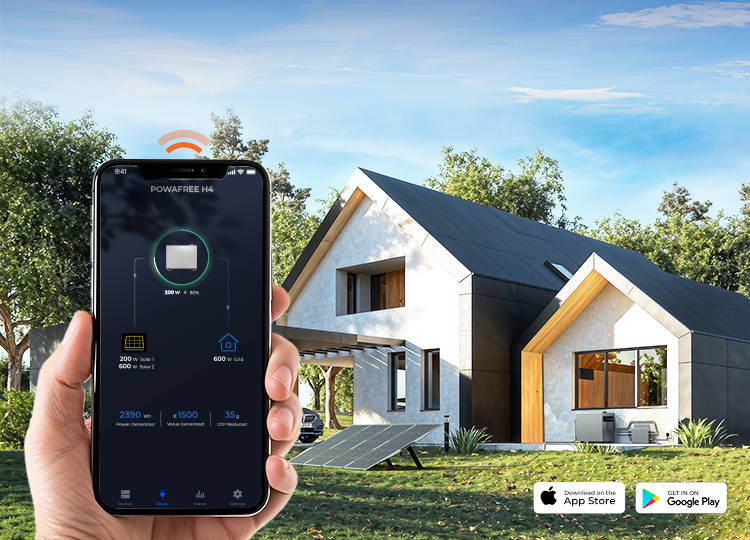

SMART SURVEILLANCE

Advanced features, controls, and device information of the POWAFREE, such as panel productivity, storage capacity, and generated value, can be accessed in real-time through BigBlue's custom-specified app.

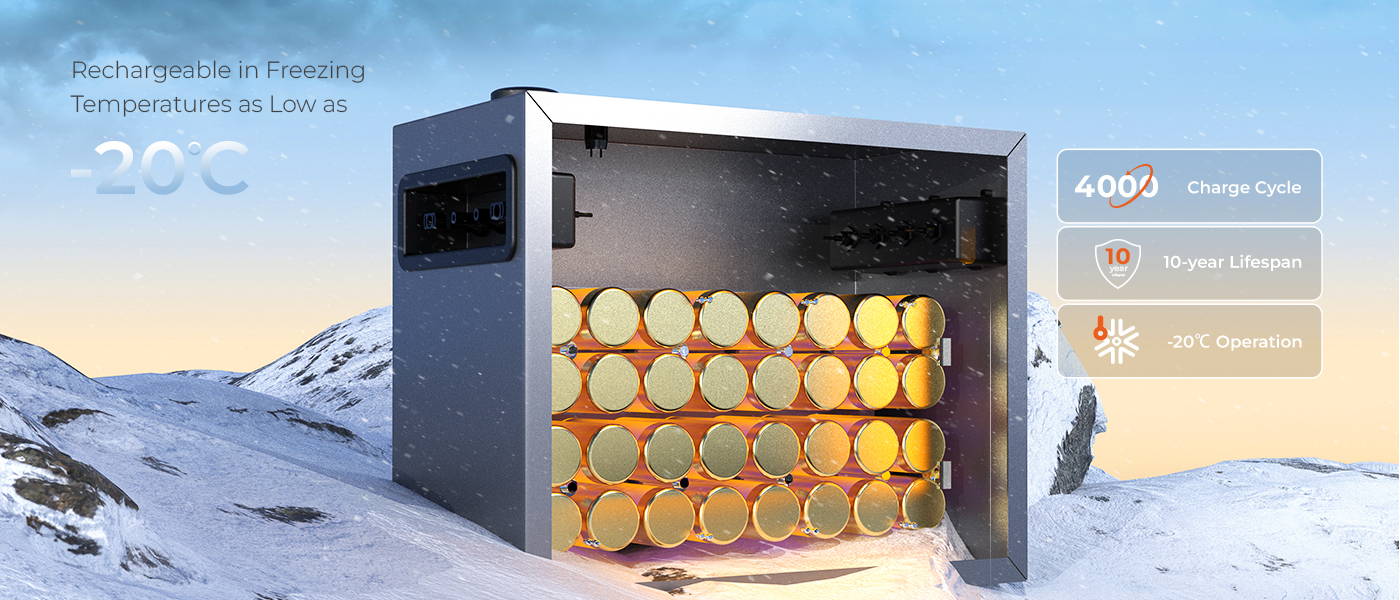

SUB-ZERO Temperature Recharge

Thanks to an integrated heating system, the POWAFREE H4 continues to operate and store energy even in sub-zero temperatures. Powered by advanced EV (electrical vehicle) grade LiFePO4 battery, the H4 boasts over 4,000 charge cycles while retaining up to 80% of its original capacity, offering a lifespan of up to 10 years.

AFFORDABLE & EFFORTLESS SOLAR INTEGRATION

Thanks to its universal adaptability, the POWAFREE H4 seamlessly integrates with most plug-in solar systems on the market. Affordable and adaptable, it allows you to meet changing energy needs without the cost of a complete system overhaul. Simply enhance your current solar setup by adding our battery pack for a seamless upgrade.

SAVE MONEY & MOTHER PLANET

Save up to 39% on your electricity bills while reducing your carbon footprint by up to 650kg annually. Simply order, install, and begin generating green power with a commitment to sustainability.

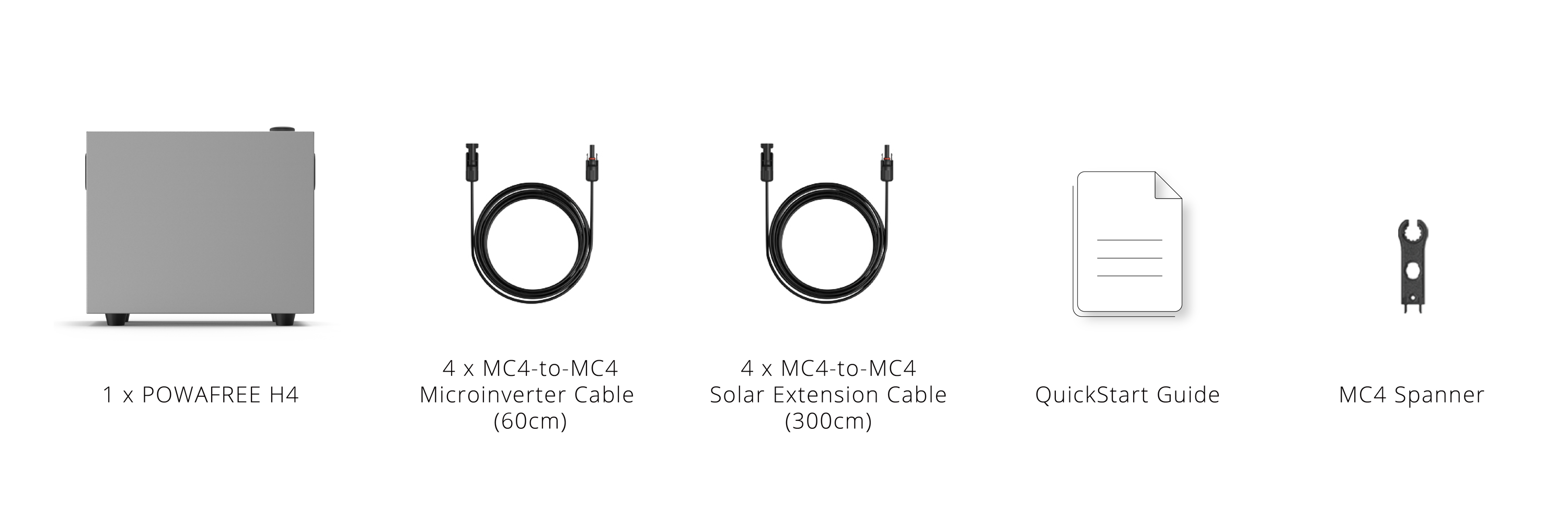

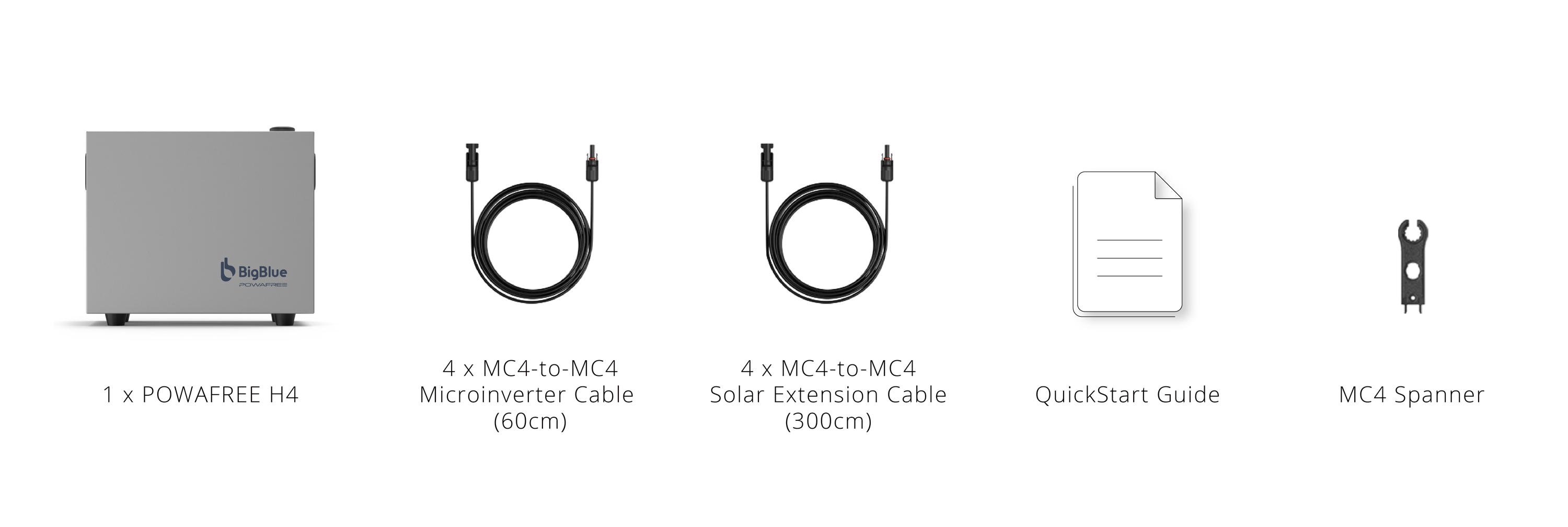

WHAT'S IN THE BOX

POWAFREE H4 BALCONY SOLAR

  • SPECIFICATIONS
  • FAQs
  • REVIEWS

MECHANICAL DATA

Capacity

2,048Wh

Battery Type

LiFePO4

Housing Material

Zinc alloy

Protection Level

IP65

Performance Warranty

3 years

Dimensions (L x W x H)

400 x 320 x 210mm

Weight

23.5 ± 0.5kg

Wireless Type

Bluetooth 5.0 & WiFi 2.4GHz

PV INPUT

Input Power

100 - 400W per channel (total two channels)

Input DC Voltage

12 - 65V

MPPT Voltage

26 - 50V

Input Current

15A

STORAGE INPUT

Input Power

800W

Input Current

20A (max)

Input Voltage

44 – 58.4V

OUTPUT TO MICROINVERTER

Output Power

800W (max)

Output Voltage

55V (max)

Output Current

18A (max)

 Connector

MC4

OPERATING CONDITIONS

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Storage Temperature

-20°C to 45°C (-4°F to 113°F)

Altitude

<2,000m

1. What is BigBlue POWAFREE H4?

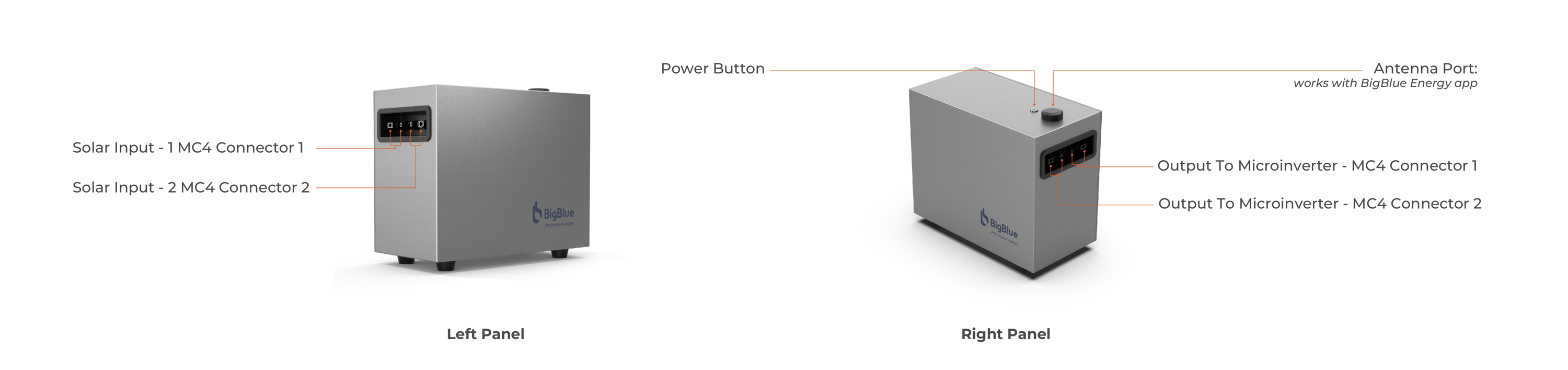

POWAFREE H4 is a compact integrated energy storage system that combines the PV controller and battery pack into a single unit. Experience the convenience of integration with our 2-in-1 POWAFREE Balcony Solar - affix to your balcony railing or privacy screen, then simply pair it, plug in, and power up! Effortlessly generating power as easily as ABC, starting during the day.

2. What are the differences between the POWAFREE H4 and the previous model H1?

The main differences between POWAFREE H4 and the first generation H1, are in the design and waterproof levels. The H4 features a 2-in-1 design, integrating the PV hub and battery into a single unit. In contrast, the H1 utilizes a separated PV hub and battery setup.

3. How can I access real-time data on the power generated by the POWAFREE system?

Advanced features, controls, and device information of POWAFREE Balcony Solar; like your power consumption, storage capacity, and panel productivity to name a few, can be accessed in real-time from BigBlue ’s custom-specified app – ‘BigBlue Energy’ over a Wi-Fi connection.

4. How can I control the generated power via the App?

There are three operating modes available:

Self-Storage: Prioritize power storage (to the battery). Select this option if you want to prioritize charging the POWAFREE H4 until it reaches the charging limit. In this mode, the H4 will not discharge to the microinverter/grid.

Self-Consumption: Prioritize power supply (to the grid). Select this option if you want to prioritize meeting the power consumption of the home. In this mode, all solar input will be directed to microinverter/grid.

Customization: Set your preferences based on time frames and wattage values. This mode allows you to tailor the energy distribution to match your specific needs.

5. I have had my solar panel system installed and would like to store the extra generated power in a battery system. Can I pair it with POWAFREE H4?

Yes, you can pair your solar panel system with the POWAFREE Balcony Solar as long as it meets the specification requirements for the POWAFREE H4. Specifically:

- The solar panel's open circuit voltage (Voc) should be within 16V to 60V. It's recommeded that the closed-circuit current for a single PV input should not exceed 24A.

- The microinverter’s PV input voltage should be within 16V to 58V. For optimal performance, we recommend using microinverters from APsystems.


Note: Input voltage that exceeds the specified range can cause permanent damage to the POWAFREE H4.

6. Can I connect several solar panels to POWAFREE H4?

Yes. The POWAFREE H4 features two distinct groups of solar inputs. Each with 100-400W per channel, with an open circuit voltage spanning from 12V to 65V. It's important not to surpass this voltage range.

7. Can the POWAFREE H4 operate in the wintertime?

Thanks to the revolutionary and ground-breaking BigBlue’s Complementary Optimization technology, the POWAFREE H4 continues to dis/charge even in below-freezing conditions when faced with extremely cold temperatures.

8. What is the expected lifespan of the POWAFREE H4?

The POWAFREE H4, equipped with a LiFePO4 battery, is designed with a lifespan of approximately 10 years, depending on usage and maintenance. The battery is rated for 4000+ charge cycles while retaining up to 80% of its original capacity.
